How To Bench Test A Spider Fuel Injectors After Rebuild? Step-by-Step Guide

Last Updated on August 13, 2026

If you’ve just rebuilt your Spider fuel injectors, you know the hard work isn’t over yet. The next crucial step is bench testing them to make sure they work perfectly before putting them back in your engine.

Skipping this step could lead to poor performance or even damage down the line. You’ll discover a simple, step-by-step method to bench test your Spider fuel injectors confidently. By the end, you’ll feel empowered to ensure your injectors deliver the right spray pattern and fuel flow, saving you time, money, and frustration.

Ready to get your hands dirty and guarantee a smooth running engine? Let’s dive in.

Tools And Equipment Needed

Bench testing spider fuel injectors after a rebuild requires specific tools and equipment. Having the right items ensures accurate results and protects the injectors from damage. Prepare all tools before starting to save time and avoid mistakes.

Each tool plays a key role in checking the injector’s spray pattern, flow rate, and electrical function. A clean workspace is essential for proper testing. Use equipment that matches the injector specifications for best results.

Fuel Injector Cleaning Kit

This kit includes brushes and cleaning solutions to remove dirt before testing. Clean injectors give more reliable test outcomes. Use the kit to prepare injectors and avoid clogging during the test.

Fuel Injector Tester

This device simulates engine signals to open and close the injector. It helps check if the injector sprays fuel correctly. Choose a tester compatible with spider fuel injectors.

Multimeter

Use a multimeter to test the injector’s electrical resistance. This ensures the coil inside the injector works properly. Low or high readings indicate potential electrical issues.

Pressure Regulator And Fuel Pump

These create the correct fuel pressure during the bench test. Proper pressure is critical for realistic injector performance. Maintain steady pressure to avoid false results.

Catch Container And Tubing

Collect fuel sprayed by the injector in a container. Tubing connects the injector to the fuel source and catch container. Use clean, fuel-resistant tubing to prevent leaks and contamination.

Safety Gear

Wear gloves and safety glasses to protect from fuel spills. Work in a well-ventilated area to avoid inhaling fumes. Keep a fire extinguisher nearby for emergencies.

Preparing The Injector For Testing

Preparing the injector for testing is a key step after rebuilding it. This ensures accurate results during the bench test. The injector must be clean and free of debris. Dirt or residue can affect performance readings.

Before testing, inspect the injector carefully. Look for damage on the nozzle and seals. Replace any worn parts to avoid leaks. Proper preparation saves time and prevents errors.

Cleaning The Fuel Injector

Start by cleaning the injector thoroughly. Use a fuel injector cleaner or an ultrasonic cleaner. Remove all dirt, carbon buildup, and old fuel residues. Clean injectors provide precise spray patterns and flow rates.

Checking Electrical Connections

Inspect the electrical terminals on the injector. Ensure they are clean and free from corrosion. Use a small brush or contact cleaner if needed. Good connections ensure proper signal transmission during testing.

Installing New Seals And O-rings

Replace old seals and O-rings with new ones. This prevents fuel leaks during the test. Lubricate the seals lightly with clean engine oil. Proper sealing maintains correct pressure inside the injector.

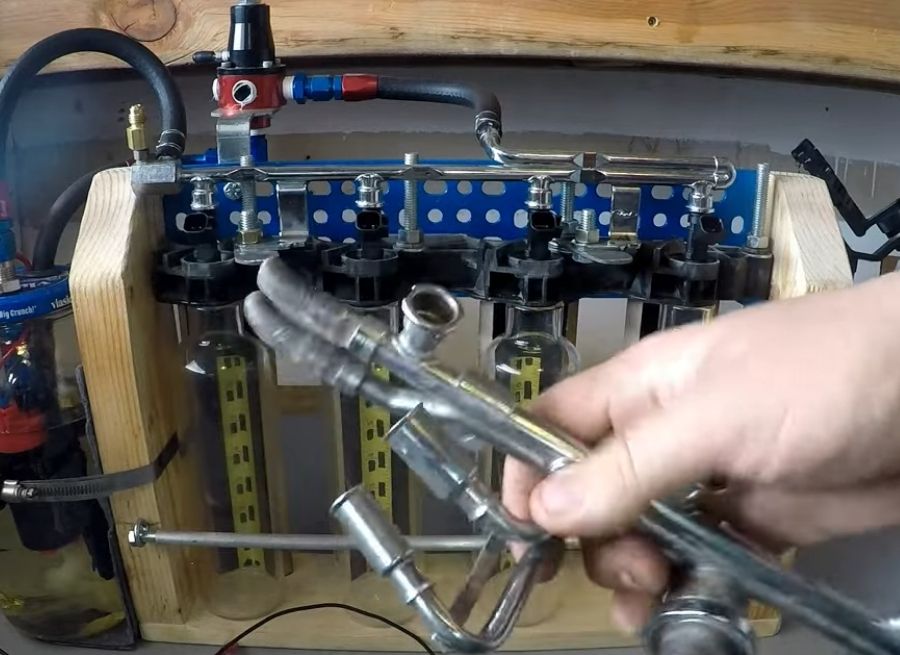

Setting Up The Test Bench

Prepare the test bench with correct pressure settings. Connect the injector securely to the fuel supply and electrical harness. Check all connections twice. A stable setup prevents errors during the bench test.

Performing The Bench Test

Performing a bench test on Spider fuel injectors after a rebuild is crucial. This test checks if the injectors work correctly before reinstalling them. It helps find leaks, blockages, or electrical issues early. Testing saves time and avoids engine problems later.

Prepare a clean workspace with all tools ready. Use a fuel injector tester or a multimeter and a power supply for the test. Follow safety rules strictly to prevent accidents. Keep the injectors secure during testing to get accurate results.

Setting Up The Fuel Injector For Testing

First, connect the injector to a power source matching its voltage. Use a fuel injector tester or a 12V battery with a resistor. Connect the injector’s electrical terminals properly to avoid damage.

Place the injector in a holder or clamp to keep it steady. Attach a clear tube to the injector nozzle to see fuel spray. Use clean fuel or test fluid for this process.

Checking The Electrical Resistance

Use a multimeter to measure the injector coil’s resistance. Set the meter to the ohms (Ω) range. Place the probes on the injector terminals and read the value.

Compare the reading with the manufacturer’s specs. A normal resistance value shows the coil is good. A very high or low reading means a faulty coil.

Testing The Spray Pattern And Flow

Activate the injector with short pulses from the power source. Watch the spray coming out of the nozzle through the clear tube. The spray should be fine and even, like a mist.

Check for drips or uneven spraying, which indicate problems. Repeat the pulse several times to confirm consistent flow. If the spray is weak or irregular, the injector may need cleaning or repair.

Inspecting For Leaks And Blockages

Look for any fuel leaks around the injector body during testing. Leaks can cause fuel loss and engine issues. Also, ensure the spray is not blocked or partially clogged.

Use compressed air if needed to clear small blockages. If blockages persist, a deeper cleaning or replacement is necessary.

Frequently Asked Questions

What Is Bench Testing For Spider Fuel Injectors?

Bench testing checks if rebuilt Spider fuel injectors work correctly before installation.

Why Bench Test Spider Fuel Injectors After Rebuild?

It ensures injectors spray fuel evenly and have no leaks or blockages.

How Do You Prepare Spider Injectors For Bench Testing?

Clean injectors, connect to a test bench, and supply proper fuel pressure.

What Tools Are Needed For Bench Testing Fuel Injectors?

A test bench, fuel supply, power source, and pressure gauge are essential.

How To Identify A Faulty Injector During Bench Testing?

Look for uneven spray, leaks, or no spray when powered on.

How Long Does A Typical Bench Test Take?

Testing each injector usually takes about 2 to 5 minutes.

Conclusion

Testing your Spider fuel injectors after a rebuild ensures they work well. It helps find leaks, clogs, or wrong spray patterns. A good bench test saves time and money later. Follow the steps carefully for safe and accurate results. Regular checks keep your engine running smooth and strong.

Take your time and be patient. This simple process protects your vehicle and boosts performance.
